15’, 40k, 5mm w/ 3/8” HP w/ Burst Shield

15’, 40k, 5mm w/ 3/8” HP w/ Burst Shield

$615.00

SKU: 7003-H Category:

Ultra High Pressure Hose

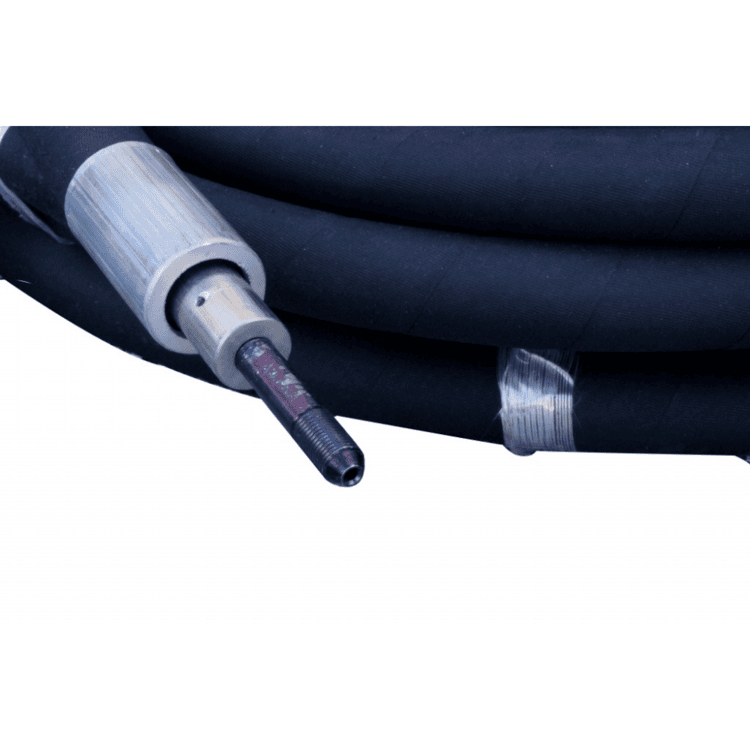

Parker 40k 5mm (3/16”) Hose w/ 3/8” High Pressure Tube Nipple End Fittings w/ Black Burst Shield Protective Cover

  • Parker Hannifin 40,000 psi 5mm (3/16”) Hose

  • 3/8” High Pressure Tube Nipple Stainless End Fittings

  • Black Burst Shield Protective Cover

Please contact us for quantity & contractor discounts
Contact us for pricing and availability on custom lengths & fittings

Quantity:

Applications:

  • For very-high pressure lances with working pressures up to 300MPa for the construction and shipbuilding industries or for common industrial cleaning applications.
  • Mainly used for hydro-demolition and removal of accumulated dirt and materials from surfaces such as concrete, asphalt and tanks.

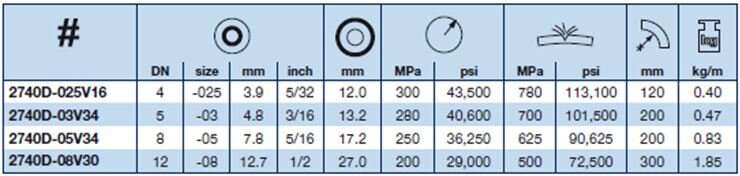

Construction:

Core Tube: Polyoxymethylene
Pressure reinforcement: Six spiral layers of maximum tensile steel wire
Cover: DN4: Polyurethane, DN5-12: Polyamide
Colour: DN4: Yellow, DN5-12: Red, DN12: Black

Temperature Range: -10c up to +70c

See the Parker Catalog 4462 Global Edition

Burst Shield
