Rotating Jetlance Components & Replacement Parts
Maximize your equipment's lifespan with our fully serviceable Jetlance. Explore the interactive components below to purchase spare parts online or via our expert team.
Swivel Shaft Housing Oil Seal 6013
Keeps lubrication contained within the shaft housing.
Air Motor Mount/Adapter Plate 6010
A heavy-duty adapter plate that aligns the motor perfectly with the timing assembly.
Keyless Coupler 5610
Provides a high-torque connection between the drive components without the need for traditional keys or set screws.
Casing, Timing Belt 6011-A
A protective enclosure to prevent debris from interfering with the belt and pulley system.

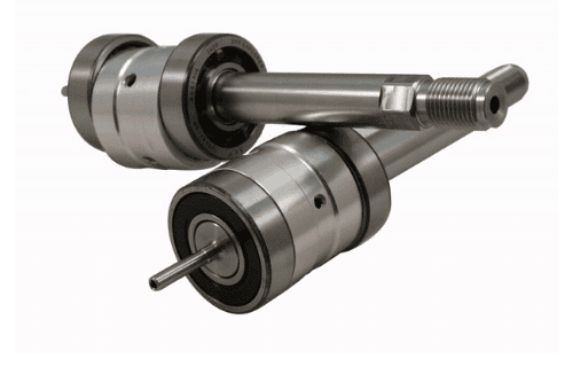

Swivel Shaft/Stem Coupler 6003
The bridge that connects the mechanical drive to the high-pressure fluid stem.
High Pressure Stem 15"-28" - Same length as Shroud 7031-XX
The central conduit for ultra-high-pressure water, matched in length to the outer shroud for optimal reach.
Air Actuated Pilot Valve 6045
The pneumatic control switch that engages water flow when the trigger is pulled.
End Bushing Oil Seal 6014
Seals grease and prevents debris from entering the front of the shroud.
All Jetting’s tried and true rotating waterblasting jetlance guns can operate up to 55,000 psi (3,790 bar) for your surface preparation projects.
The jetlance is powered by a 4,800 rpm air drill – the fastest on the market – for optimum waterjet cleaning and surface prep. This amazing rotation speed of the air drill and the ultra-high force of the water powers the waterjetting nozzle head for superior coating removal and cleaning.
All Jetting’s hydroblasting jetlance is available in 5 standard lengths with a modular lance and shroud system, allowing users to quickly convert between sizes according to their job. We know your time is valuable, so our waterjetting rotating jetlance is made for efficiency.
The rotating jetlance is air-powered to control the rotation speed of the nozzle head for optimum surface preparation. Our jetlance is compatible with all major waterblasting pump types
Jetlance spare parts and sapphire waterjet nozzle tips are made here in the USA with the highest quality material. Our prices are more than reasonable, and our parts are in stock in order to help you increase the profit of your water blasting project.
Specifications of AJT’s Rotating Jetlance:

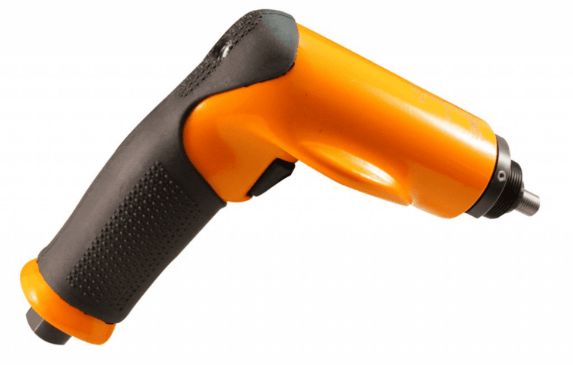

- Dotco/Apex Tool air drill,……… 4,800 rpm free speed air motor. 38 cfm, .9 HP Non-Reversible 4800 RPM Air Drill
- Jetlance weight w/o hose…………… 10.5 lb.
- Max. operating pressure………………55,000 psi/3,790 bar
- Max. flow rate…………………………18 gpm
- Air requirement…………………………38 cfm
- 1/4” NPT Air Connection
- 3/8” HP Female Water Inlet
- Ergonomic handle for comfort and safety

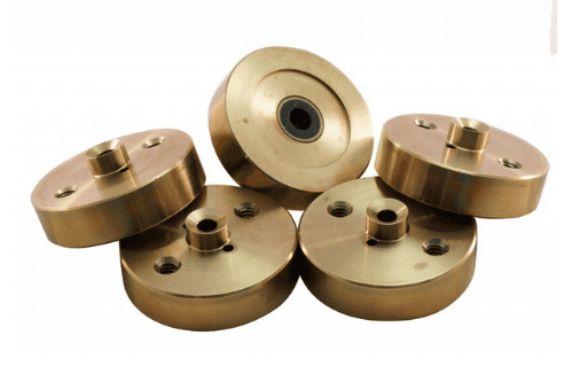

- Dual trigger for safety and back-up ring assembly

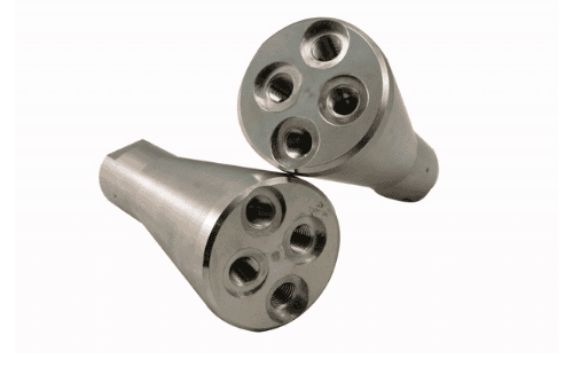

- 4 or 5 jet nozzle carrier heads available – other nozzle head configurations available; compatible with 3/8” hex sapphire nozzles also manufactured by All Jetting Technologies.
- Long life seal
- No grease end bushing and mid-stem bushing
- Available in various sizes
- Affordable replacement parts always in stock
Common Applications of UHP Waterjetting
- Cleaning and descaling of pipelines
- Surface preparation for painting or coating of boats, ships, and aircraft carriers
- Removal of rust, paint, and other coatings
- Thermoplastic road line removal
- Airport runways removal of rubber deposit
- Removal of airfield markings
- Rejuvenation of road pavement and airport runways
- Pool refurbishment
- Concrete demolition
- Refurbishment of Parking Garages
- Ship and marine hull cleaning
- Deposit removal
- Eliminating contaminants from most surfaces
- Power Plants
Advantages of Ultra High Pressure (UHP) Waterjetting
- Dustless
- Environmentally Friendly – no toxic contaminants or chemicals are used.
- Does not disturb the integrity of structures.
- Reduces Surface damage.
- Water blasting is typically five times faster than abrasive sandblasting.

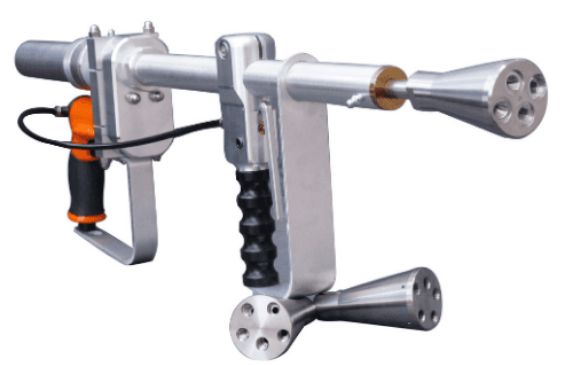

Air Operated Rotating Jetlance
Price up to $2,999.00 without jet head
Product SKU: 5999
Affordable replacement parts
Available Barrel Lengths 15.5″ – 22.5″ – 24″ – 26″ – 28″
Rated for 55,000 PSI/ 3792 Bar
View Jetlance Diagram List
View Exploded Jetlance Diagram
Please contact us for quantity and contractor discounts
